NR4040-AQC Spindle Air driven tool change (40.000 rpm) Dia. 40mm
Product information

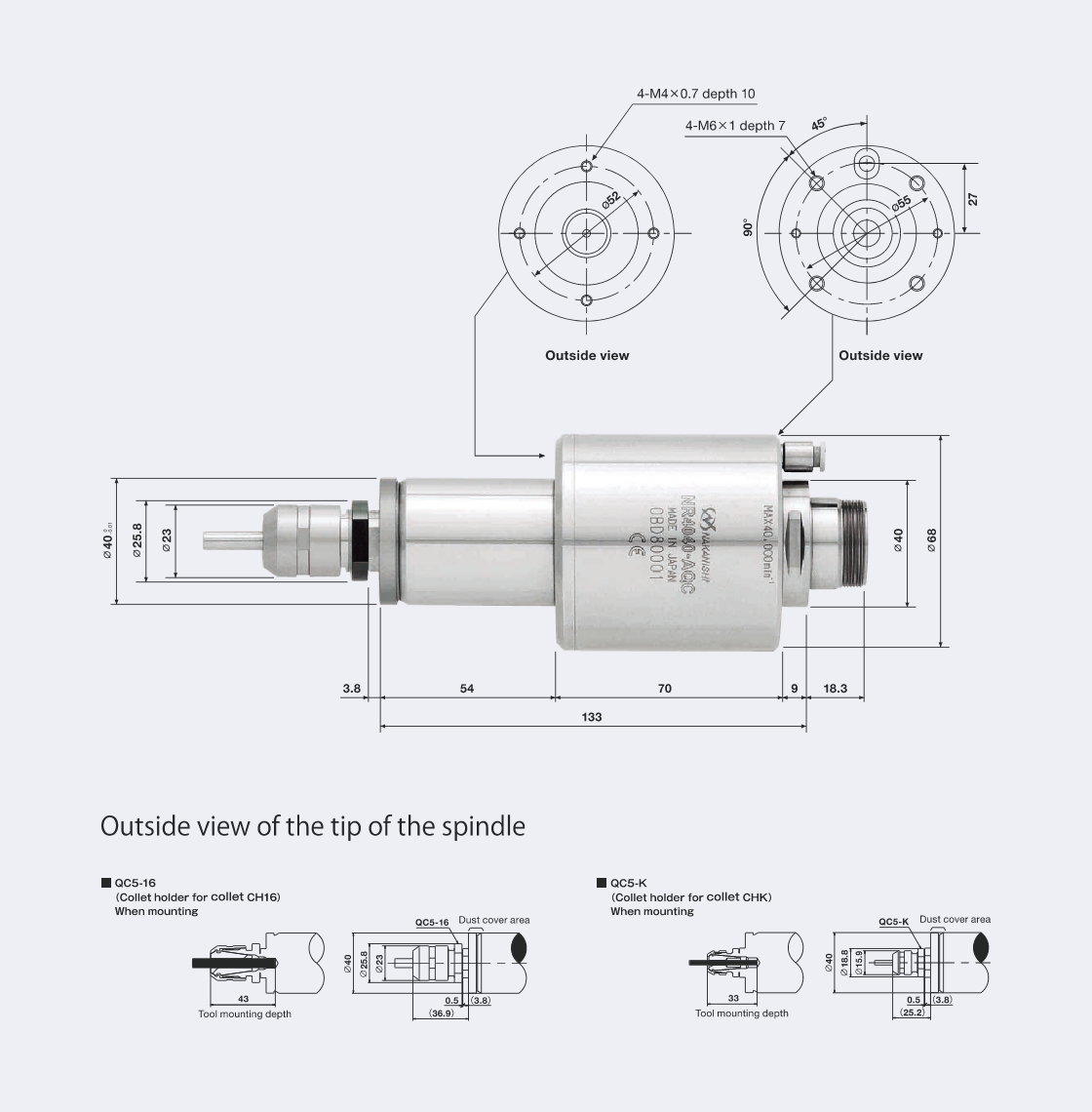

Spindle Air driven tool change (Max. 40.000 rpm) Diameter 40mm
| Spindle accuracy | Within 1 μm |
| Max. rpm | 40,000 rpm |
| Air pressure to open the collet | 0.55-0.6 MPa |
| Weight | 2,160 g |
| Engines | EM-4020・EM-4020A・EM-4040・EM-4040A |
| Collet Retainer | QC5-16 / QC5-16-R (for collet CH16) QC5-K / QC5-K-R (for collet CHK) |
| Standard accessories | Fixed Key (36): 1st Air hose with filter (K-251): Dia 6 mm × 2 m |
Automatic tool change with BT5 collet holder.
Improves productivity by enabling external tooling.
2 types of collet holders are available (CH16 and CHK)
