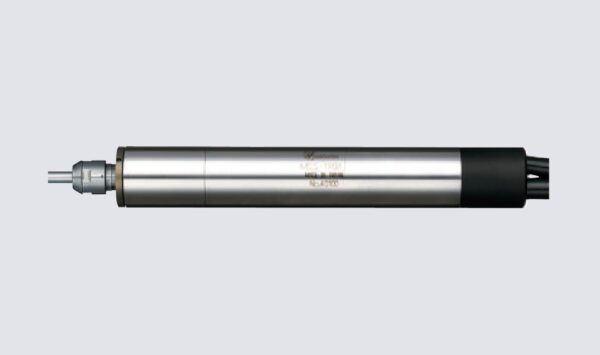

MSS-1908R Air Powered Motor Spindle Straight (8,000 rpm) Dia. 19.05mm
Product information
Air driven Motor spindle Straight type (Max. 8.000 rpm) Diameter 19.05mm
| Max. rpm | 8,000 rpm(0.5 MPa) |
| Gearing | 45661 |
| Collet | Dia 0.5-Dia 4.0 mm(CHA groups) |
| Spindle accuracy | Within 2 μm |
| Max Effect | 72 W |
| Air consumption | 155 NL/min |
| Max. Torque | 36 cN-m |
| Weight | 202 g |
| Dimension L | 126.8 mm |
| Dimension M | 39 mm |
| Standard accessories | Collet nut (CHN-A) Fixed Key (8 x 5), (9 x 11): 1 each Hose (K-221): 1 piece Filter joint (FJ-01) Silencer (K-209) |

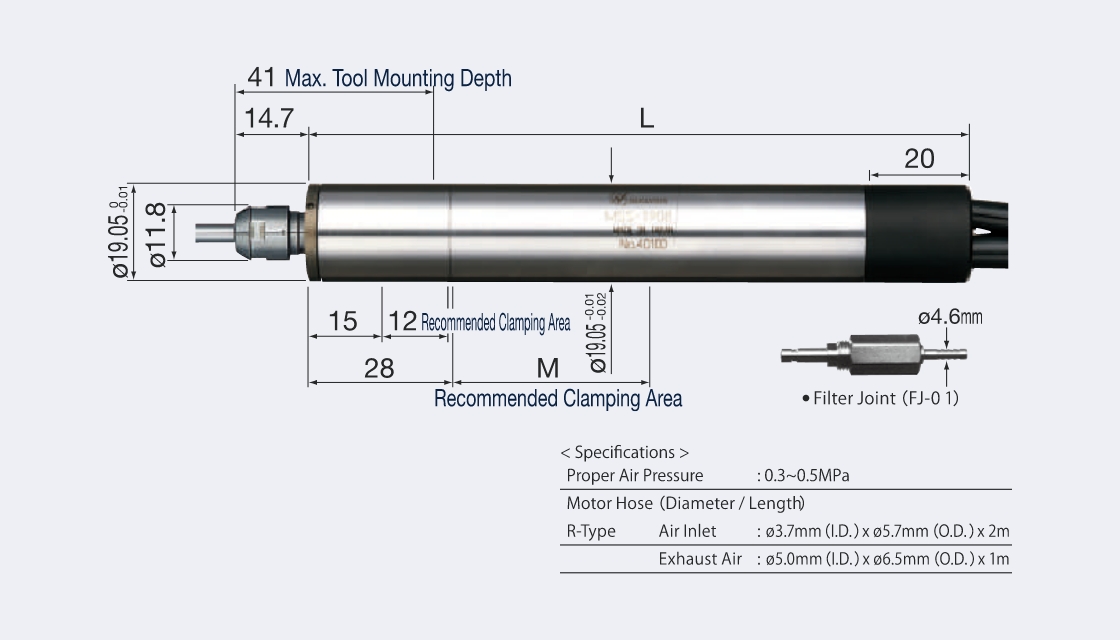

Two ranges of recommended clamping are specified, select one range, do not clamp on both
