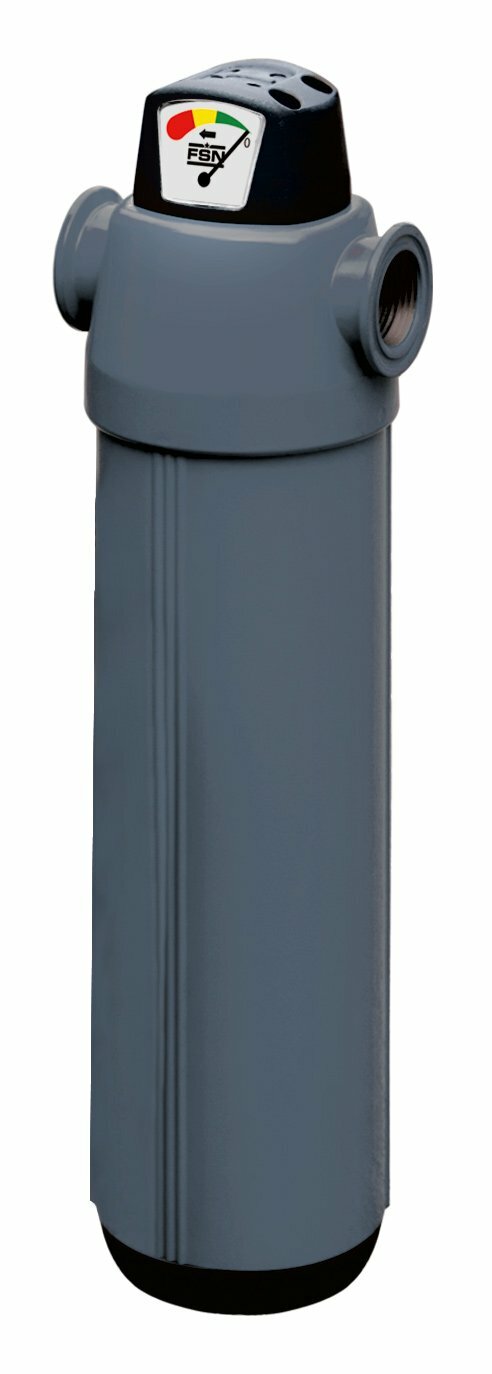

Microfilter 0.01 µm

Since the air that compressors suck in contains contaminants such as dust etc. good compressed air quality is usually dependent on good filtration, Finis stock filters are designed for filtration of entire compressed air systems and to be installed in the compressor room, they have well-designed filter inserts with large filter area to ensure high reliability and long service intervals.
The level of filtering you should use depends entirely on the application, our filters are categorised as below.
QM series, filter grade 5 micron.
PM-Series, filter grade 1 Micron, provides air with oil content 0.5 mg/cubic metre, class 2 according to ISO 8573-1.
HM-Series, Filter grade 0.01 Micron, provides "technically oil-free air" with oil content 0.01 mg/cubic metre, class 1 according to ISO 8573-1.
CM Series, Activated Carbon, provides odour & taste free air with oil content 0.003 mg/cubic metre, class <1 according to ISO 8573-1.

Technical info Filter

- Article number HM165
- Maximum flow rate (l/min) 20,167
- Maximum flow rate (m3/h) 1,210
- Maximum flow (c.f.m.) 712
- Maximum pressure (bar) 16
- Maximum pressure (p.s.i.) 232
- Thread (inches) 2
- Dimensions ØxH(cm) 16×69
